Large Piling Drill

TAD-32

Specification Unit TAD-32
Weight (excl adaptor) Kg 3200
Width mm 1013
Auger Pressing Force N 15000
Auger Pulling Force N 30000
Depth mm 1673
Drill Speed Range rpm 11-74
Height w/o Auger mm 3855
Hole Depth m 9
Hole Diameter * mm 400-1000
Max return Pressure bar 5
Oil Flow Rate l/min 75-250
Return Pressure, max bar 5
Side Tilt Angle ° +/- 30
Torque Nm 30000
Excavator Class Ton 24-35

Product Details

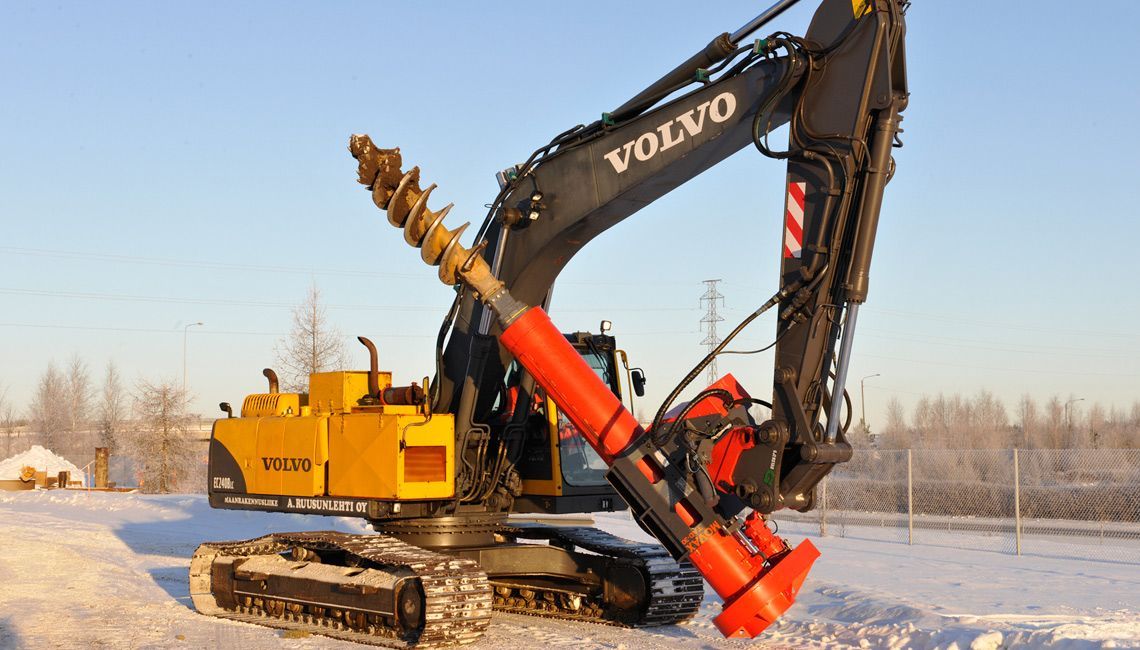

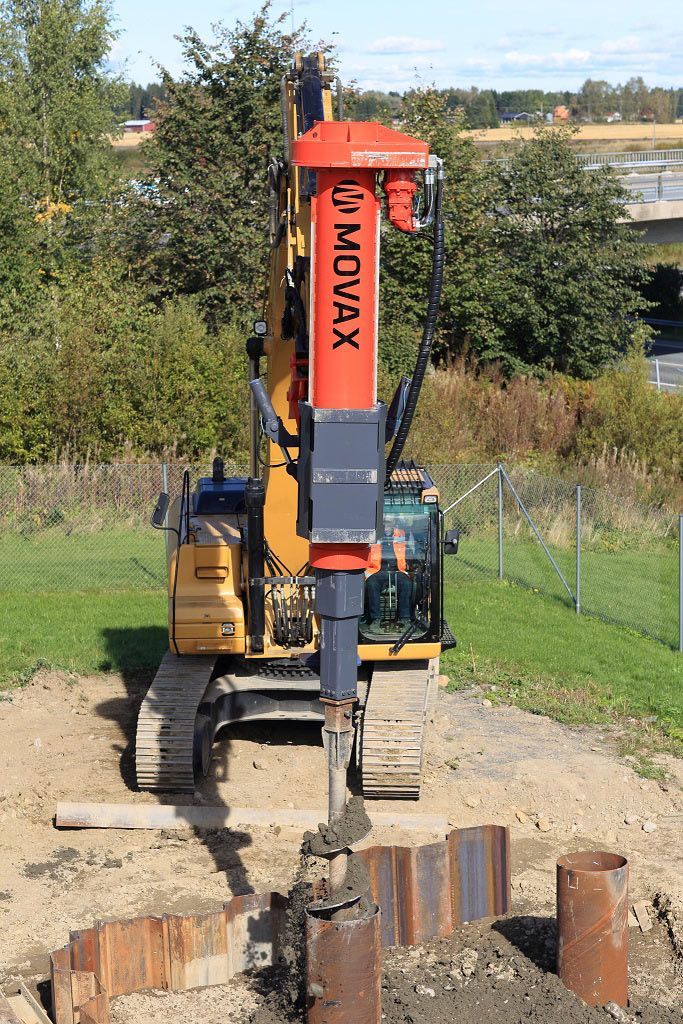

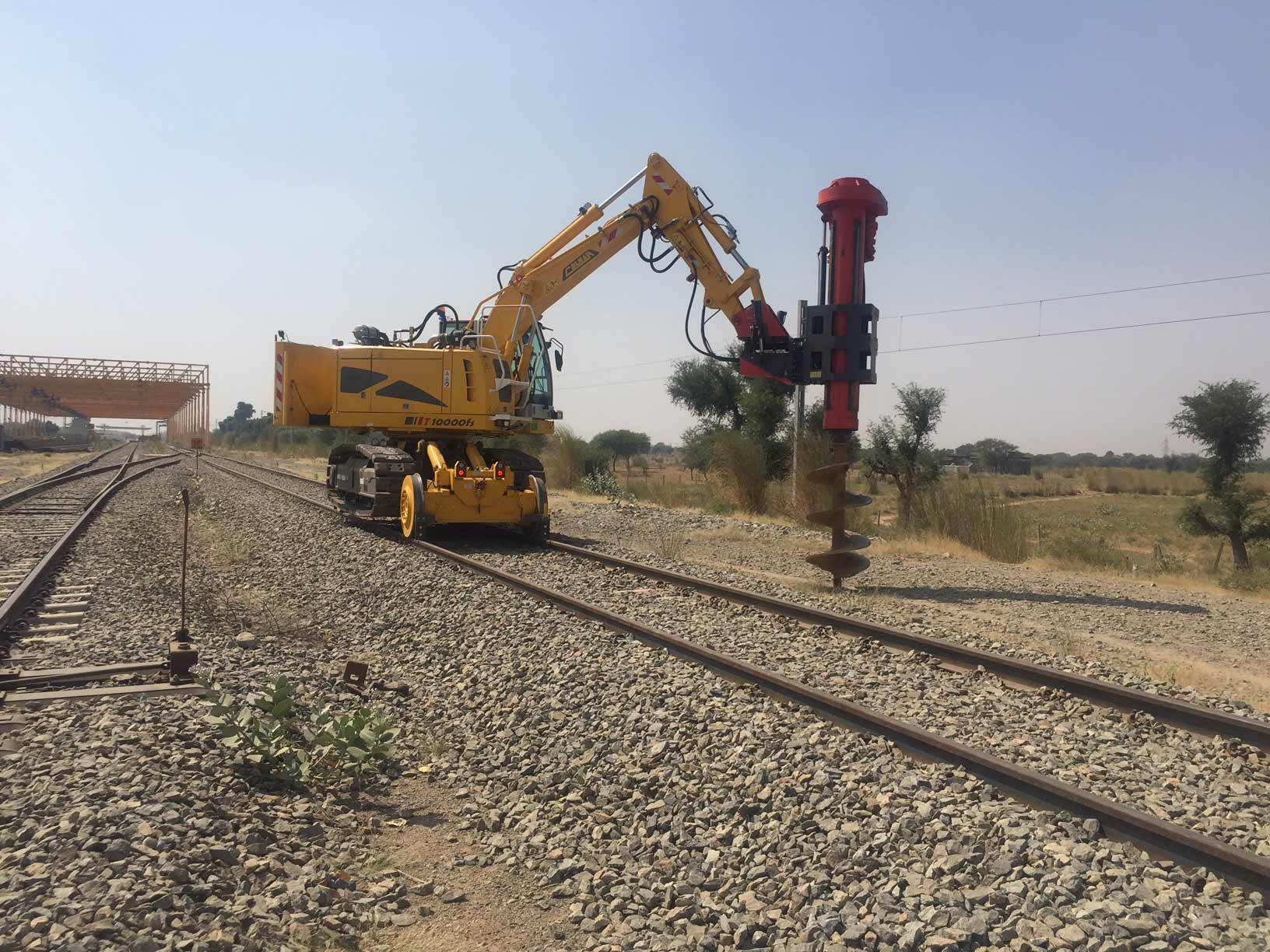

Movax Piling Drills are excavator-mounted, auger drive attachments for in-situ piling and other drilling works. The technology behind the efficiency is a hydraulically operated telescopic bar with one or two extendable sections that can reach depths up to 10 metres.


The Movax Pile Drills are suitable for different site conditions, including those with limited headroom. Hydraulically operated telescopic kelly bar with extendable sections. Excavator mounted, it is operated with normal auxiliary hydraulics.

Watch Videos

TV COMMERCIALS

Corporate TVC

DNB Rockbreakers TVC

MB Crusher & Screening TVC

MOVAX Solutions TVC

REMU Screening TVC

DNB ATTACHMENTS

Hydraulic Breaker - The Largest in the world

DNB Hydraulic Rock Breaker

Hydraulic Rock Breakerin South Korea

Hydraulic Rock Breaker

Advertisement

Hydraulic Rock Breaker D300IIS

MB CRUSHER

Discover how it's easy to crush with MB!

Solving Productivity Issues with a Drum Cutter

Drum Cutter 1

Drum Cutter 2

CPS Bobcats

Crushing and screening in Norway

SAM 4814

Confined Spaces Challenge

Turning waste into something of value

Crusher Bucket BF90.3

Crusher Bucket

MOVAX PILING

Innovative piling & foundation solutions

Amazing sheet pile driving

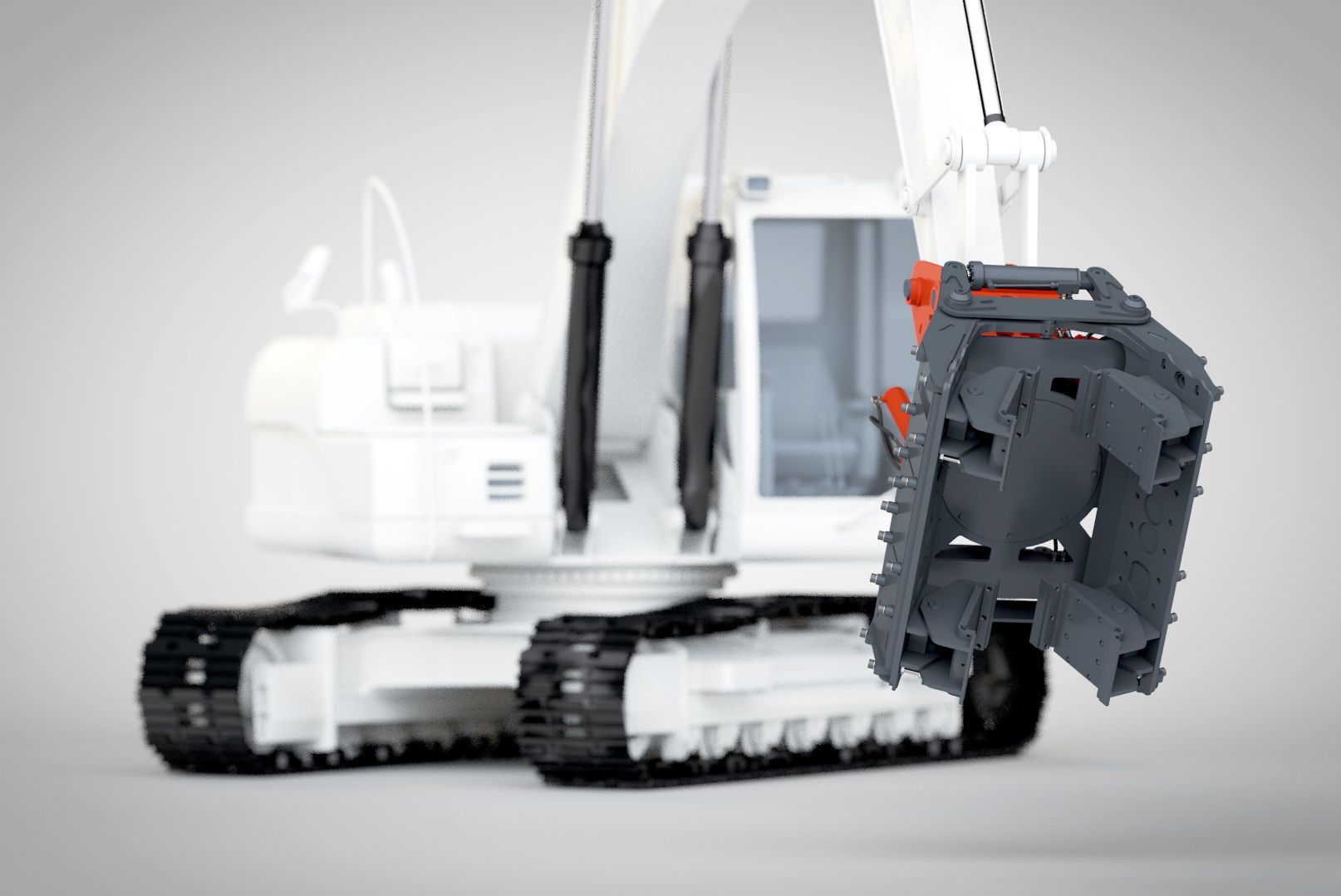

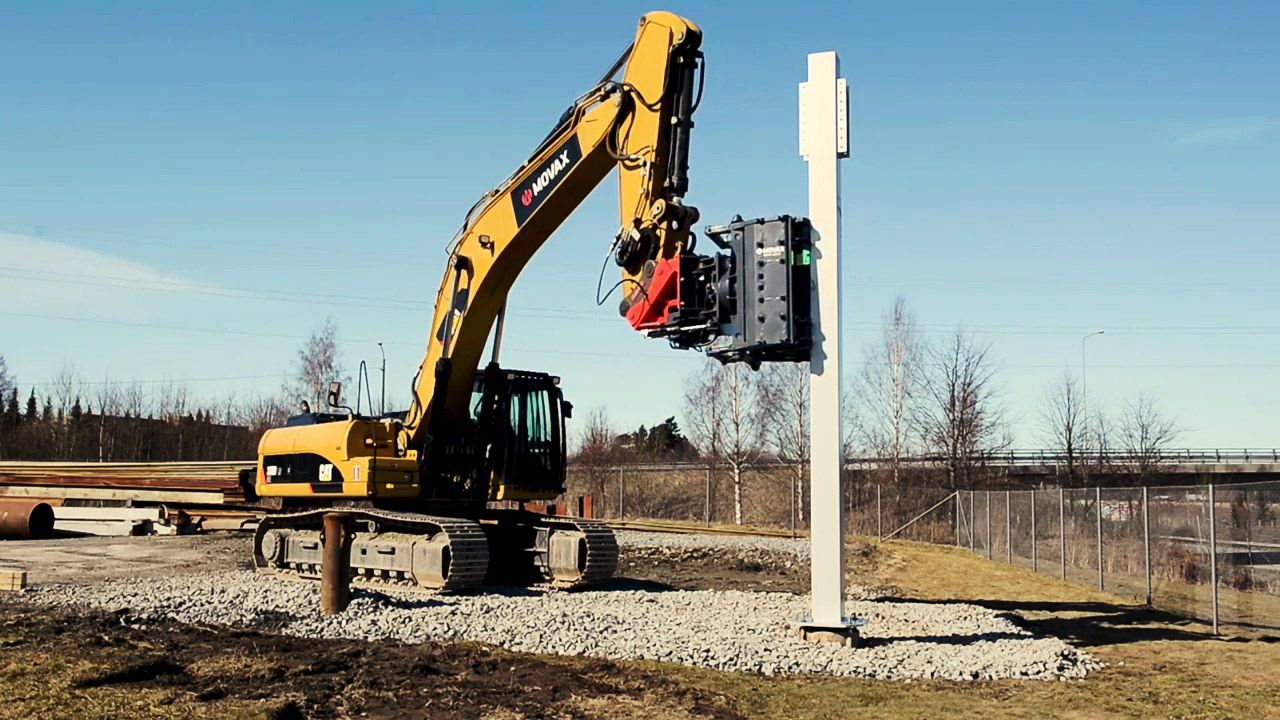

Movax Manipulator MPM 4000

mFLEET Management

Movax ML-10

MOVAX Piling Hammers introduction

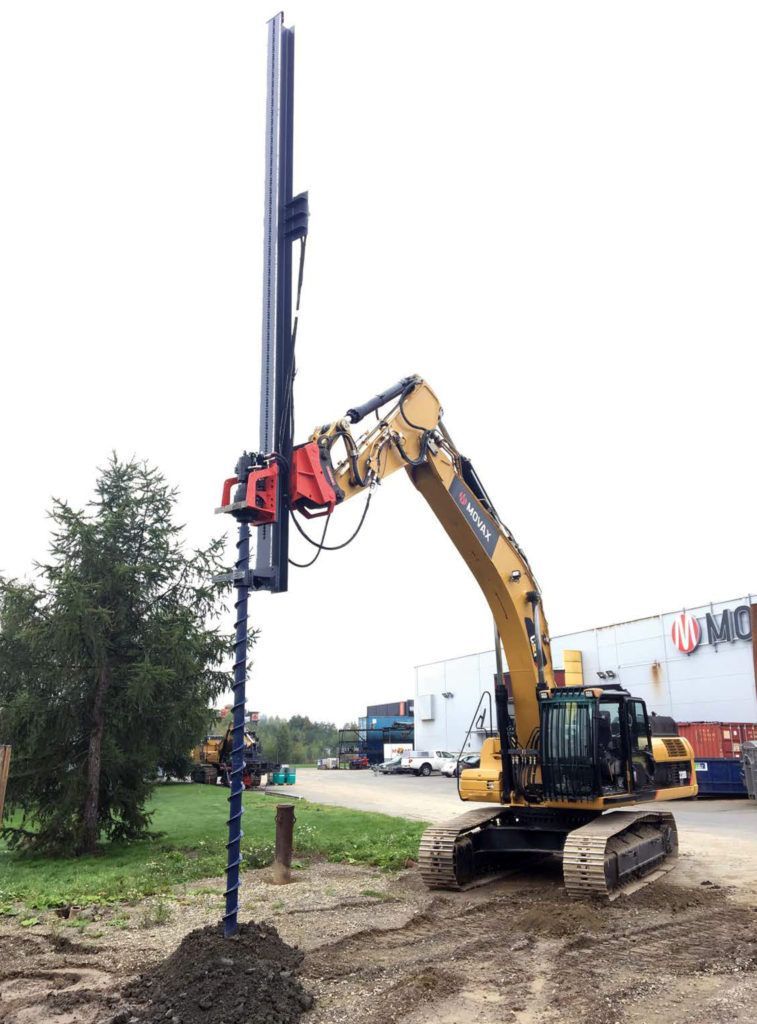

Movax Pre Auger 50
