Specification | Unit | C50 |
---|---|---|
Carrier Weight | Ton | 8-12 |
Load Capacity | m³ | 0.15 |
Opening Dimensions | mm | L540 H250 |
Output Setting | mm | 15-60 |
Length (A) | mm | 1240 |
Width (B) | mm | 1000 |
Height (C) | mm | 770 |
Weight | Ton | .75 |
Oil Flow | l/min | 90 |
Pressure | bar | 200 |
Counter Pressure | bar | 10 |
Max. Production | m³/h | 10 |
Specification | Unit | BF60.1 S4 |
---|---|---|
Carrier Weight | Ton | 14-18 |
Load Capacity | m³ | .55 |
Opening Dimensions | mm | L 610 H 510 |
Output Setting | mm | 15-60 |
Length (A) | mm | 1745 |
Width (B) | mm | 1000 |
Height (C) | mm | 1100 |
Weight | Ton | 1.6 |
Oil Flow | l/min | 98 |
Pressure | bar | 220 |
Counter Pressure | bar | 10 |
Max. Production | m³/h | 23 |
Specification | Unit | BF70.2 S4 |
---|---|---|
Carrier Weight | Ton | 120-25 |
Load Capacity | m³ | .66 |
Opening Dimensions | mm | L 740 H 510 |
Output Setting | mm | 15-130 |
Length (A) | mm | 2000 |
Width (B) | mm | 1150 |
Height (C) | mm | 1200 |
Weight | Ton | 2.3 |
Oil Flow | l/min | 140 |
Pressure | bar | 220 |
Counter Pressure | bar | 10 |
Max. Production | m³/h | 31 |
Specification | Unit | BF80.3 S4 |
---|---|---|
Carrier Weight | Ton | 25-30 |
Load Capacity | m³ | .70 |
Opening Dimensions | mm | L 850 H 510 |
Output Setting | mm | 15-135 |
Length (A) | mm | 2050 |
Width (B) | mm | 1300 |
Height (C) | mm | 1400 |
Weight | Ton | 3 |
Oil Flow | l/min | 160 |
Pressure | bar | 220 |
Counter Pressure | bar | 10 |
Max. Production | m³/h | 34 |
Specification | Unit | BF90.3 S4 |
---|---|---|
Carrier Weight | Ton | 30-35 |
Load Capacity | m³ | .90 |
Opening Dimensions | mm | L 910 H 540 |
Output Setting | mm | 15-140 |
Length (A) | mm | 2185 |
Width (B) | mm | 1340 |
Height (C) | mm | 1390 |
Weight | Ton | 3.5 |
Oil Flow | l/min | 180 |
Pressure | bar | 220 |
Counter Pressure | bar | 10 |
Max. Production | m³/h | 42 |
Specification | Unit | BF120.4 |
---|---|---|
Carrier Weight | Ton | 35-50 |
Load Capacity | m³ | 1.30 |
Opening Dimensions | mm | L 1205 H 540 |
Output Setting | mm | 15 – 145 |
Length (A) | mm | 2185 |
Width (B) | mm | 1620 |
Height (C) | mm | 1390 |
Weight | Ton | 4.8 |
Oil Flow | l/min | 210 |
Pressure | bar | 220 |
Counter Pressure | bar | 10 |
Max. Production | m³/h | 53 |
Specification | Unit | BF135.8 S4 |
---|---|---|
Carrier Weight | Ton | 50-75 |
Load Capacity | m³ | 1.60 |
Opening Dimensions | mm | L 1300 H 600 |
Output Setting | mm | 40-150 |
Length (A) | mm | 2930 |
Width (B) | mm | 1880 |
Height (C) | mm | 170 |
Weight | Ton | 7.5 |
Oil Flow | l/min | 320 |
Pressure | bar | 250 |
Counter Pressure | bar | 10 |
Max. Production | m³/h | 88 |
Specification | Unit | BF150.10 S4 |
---|---|---|
Carrier Weight | Ton | ≥ 75 |
Load Capacity | m³ | 2.30 |
Opening Dimensions | mm | L 1450 H 700 |
Output Setting | mm | 100-200 |
Length (A) | mm | 3560 |
Width (B) | mm | 2090 |
Height (C) | mm | 2065 |
Weight | Ton | 10.50 |
Oil Flow | l/min | 380 |
Pressure | bar | 230 |
Counter Pressure | bar | 10 |
Max. Production | m³/h | 120 |
MB Crushing Technology has revolutionised the concept of Crushing and Screening systems. With more than 60 years of experience in the excavation, road work, quarry, and demolition sectors, MB Crushing is at the forefront of research and technology. Designed and manufactured in Italy, only the best materials are used for excellent quality. Solid, durable, and designed to resist wear and high stresses in the toughest working conditions, which makes them the perfect accessory for the harsh Australian environment.
The MB Hydraulic Crusher Bucket range covers machines from 8 ton through to 100 ton. These units are efficient and versatile, and you can further increase productivity by adding the iron separator and the dust suppressor. These crusher buckets can be easily transported to and from sites attached to the machine. These buckets allow the material to be re-used on site. The BF90.4, for instance, can crush 42 m3/h.
TV COMMERCIALS
Corporate TVC
DNB Rockbreakers TVC
MB Crusher & Screening TVC
MOVAX Solutions TVC
REMU Screening TVC
DNB ATTACHMENTS
Hydraulic Breaker - The Largest in the world
DNB Hydraulic Rock Breaker
Hydraulic Rock Breakerin South Korea
Hydraulic Rock Breaker
Advertisement
Hydraulic Rock Breaker D300IIS
MB CRUSHER
Discover how it's easy to crush with MB!

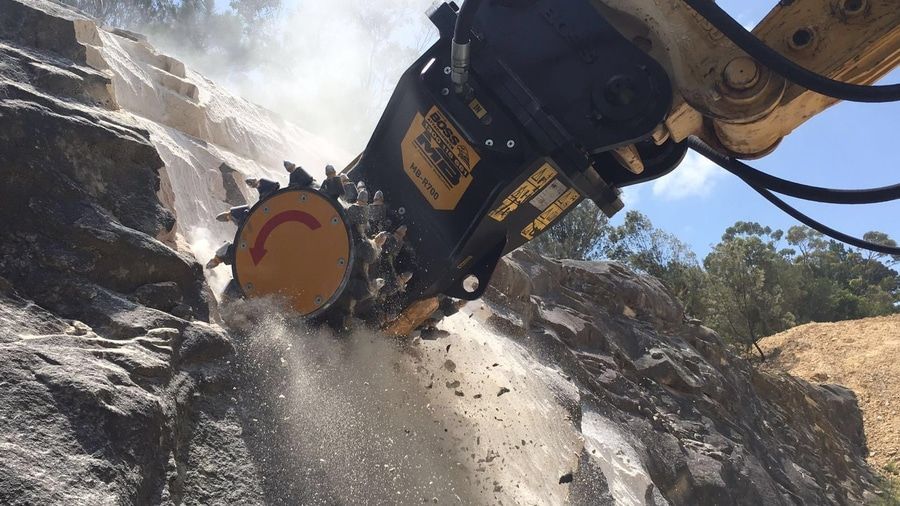

Solving Productivity Issues with a Drum Cutter
